JORC TIMER DRAIN VALVE

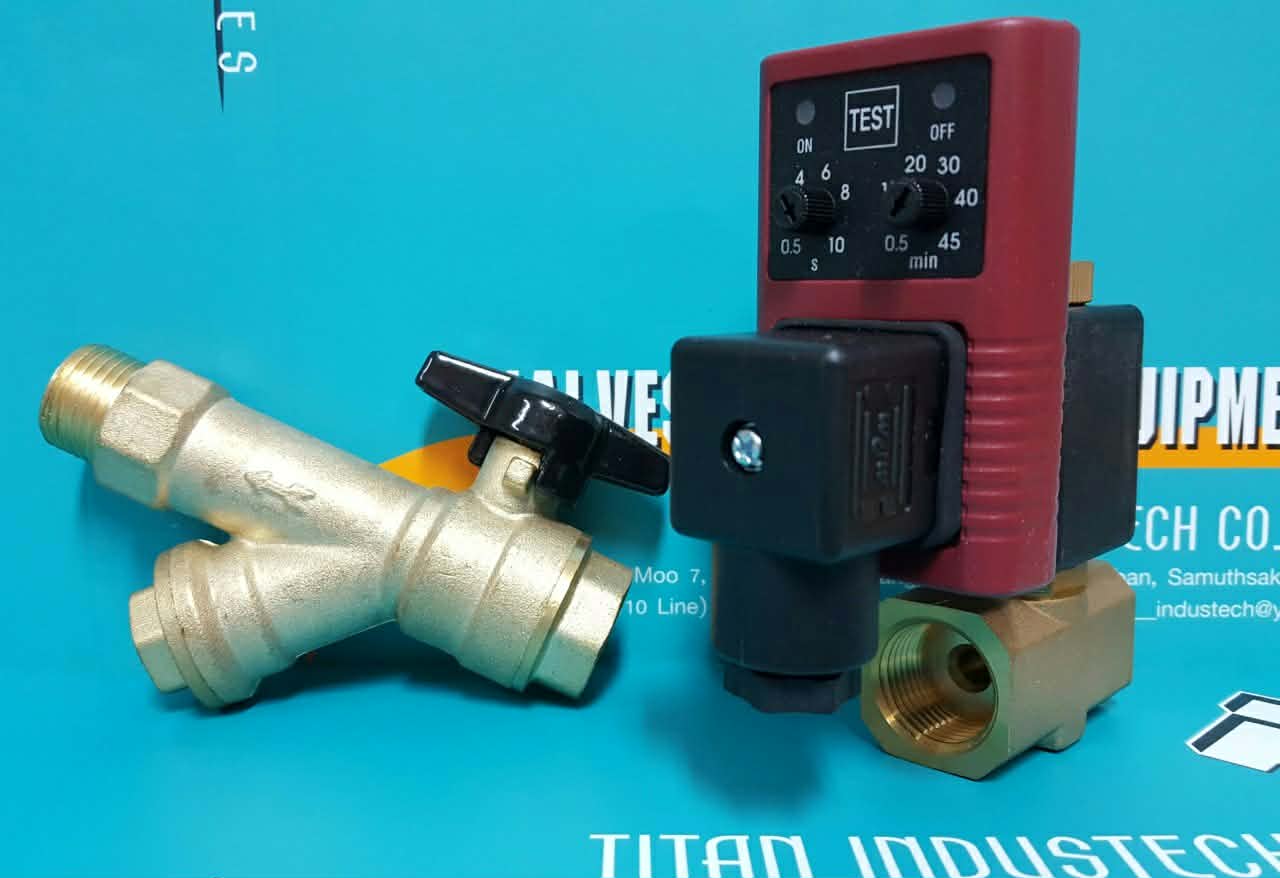

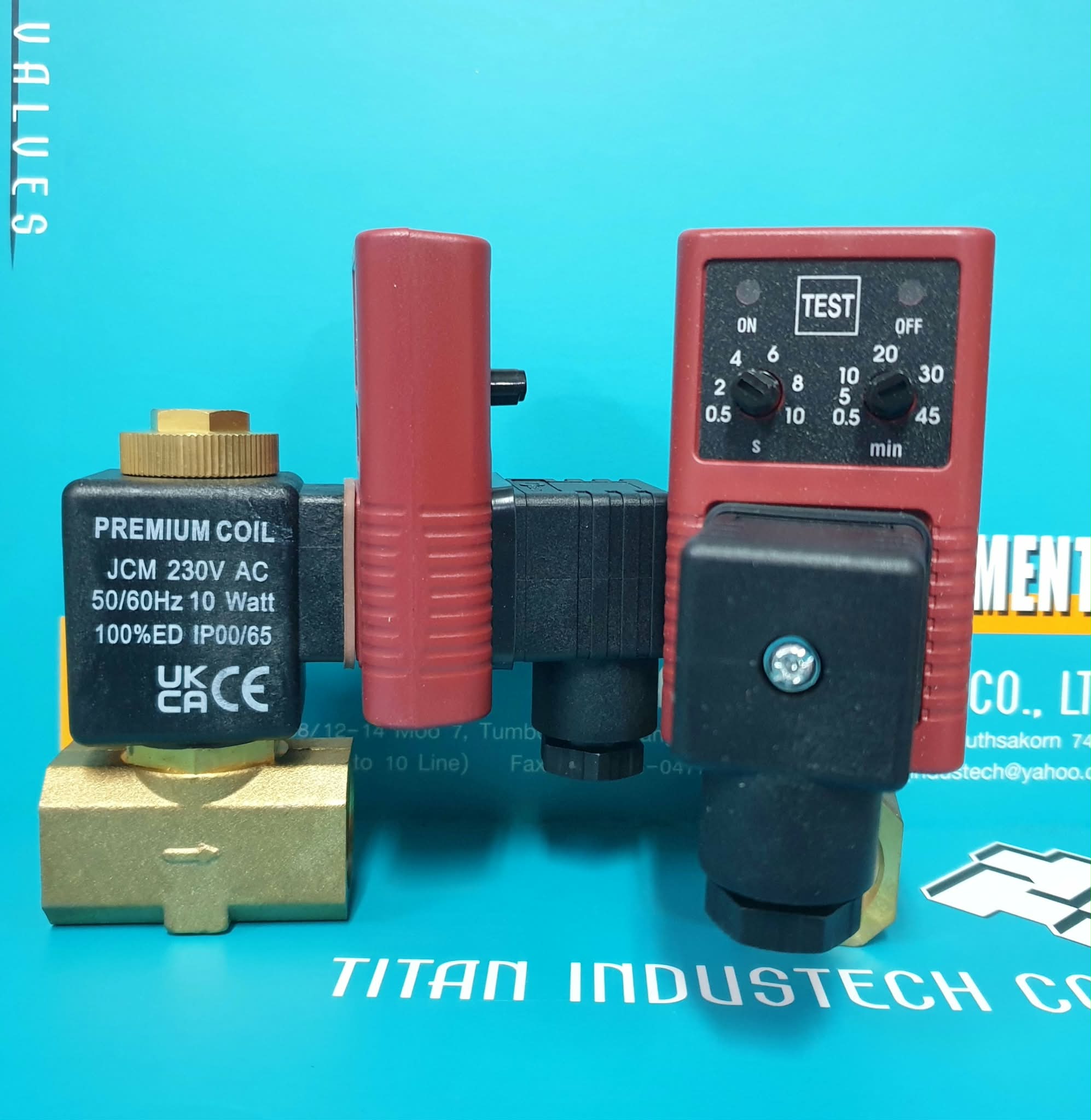

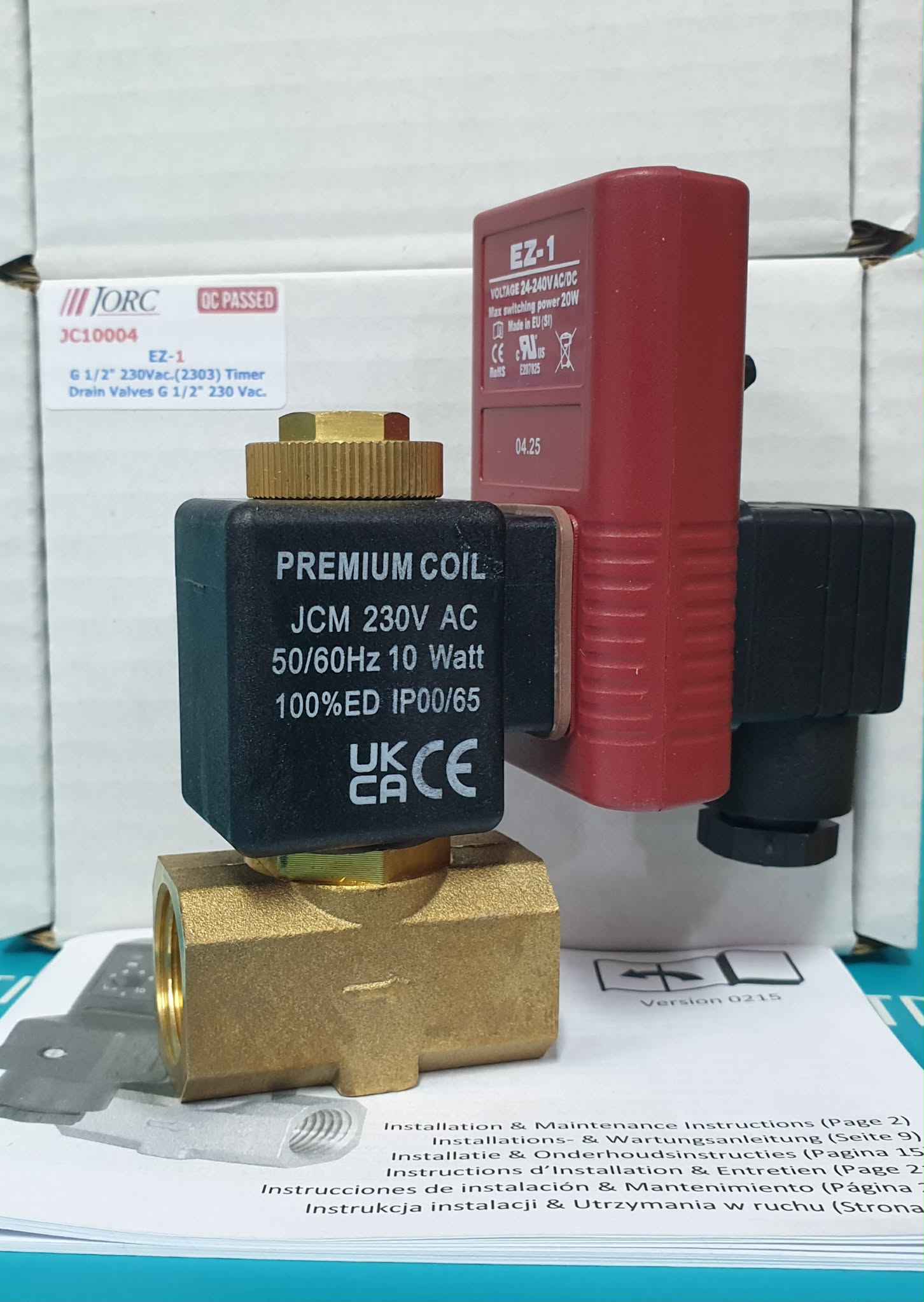

The EZ-1 Timer Controlled Condensate Drain is a combination of a solenoid valve and an electronic timer designed to automatically remove condensate from compressed air systems.

The EZ-1 is designed to remove condensate from compressors, compressed air dryers and receivers up to maximum 16 bar applications.

The EZ-1 offers true installation simplicity at the lowest possible cost.  The EZ-1 is a mass produced product available in various valve connection sizes and timer colour options.


  • Does not air-lock during operation.
  • Any type of compressed air systems and up to 16 bar.
  • Competitive pricing levels available.
  • TEST (micro-switch) feature.
  • Private labelling and colour options are possible.
  • Accurate time cycles.
  • Large (4 mm) valve orifice.
  • Quick servicing advantage.

Specifications

Maximum compressor capacity Any size
Pressure range 0 - 16 bar (higher pressure available, see FLUIDRAIN-HP-S)
Supply voltage options 24 - 230 VAC/DC 50/60Hz. (please indicate)
Medium temperature 1 - 55 °C
Ambient temperature 1 - 55 °C
Timer cycle range (On / OFF) 0.5 - 10 seconds / 0.5 - 45 minutes
Timer PCB SMD technology, ensuring consistency in production
Timer cycle indication Bright LED illumination
TEST feature Yes
Valve type 2/2 way, direct acting
Valve orifice 4 mm
Valve seals FPM
Inlet/outlet connections 1/4″, 3/8″, 1/2″ (BSP or NPT)
Inlet connection height 1 cm
Serviceable valve Yes
Valve housing material Brass
Power connection DIN 43650-A
Environmental protection IP65 (NEMA4)
