Limit Switch - APL4

The Triac APL Series Limit Switches feature high quality, easy to use multiple option switch boxes for rotary actuators. Their die cast aluminum housings are powder coated for corrosion resistance and feature red/green visual indicators, quick-set cams and easy access terminal strips. These economical switch boxes offer numerous switch, sensor and transmitter options to handle most applications found in today’s process and industrial markets. Ambient temperature range -4°F to 176°F.

APL 4 Limit Switch Features

• International Explosion-proof rating E Ex d IIB T6 and ATEX certified
• NEMA 4, 4X
• Visual indicator
• Dual conduit entries, 8 pts. on terminal strip
• Quick-set spring loaded cam
• Captive cover bolts
• Standard NAMUR brackets

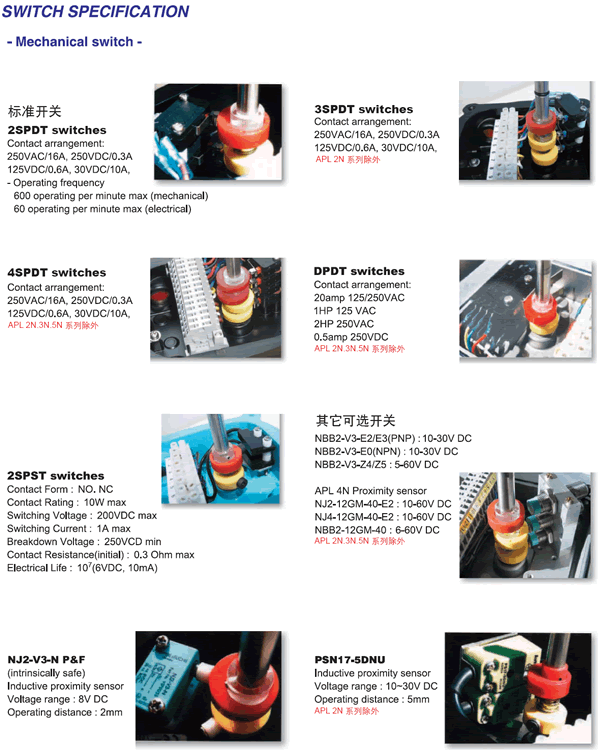

• Multiple options - up to four switches, various mechanical, proximity and reed type sensors, feedback potentiometers and 4-20mA transmitters; only enclosure capable of housing (2) DPDT Switches
