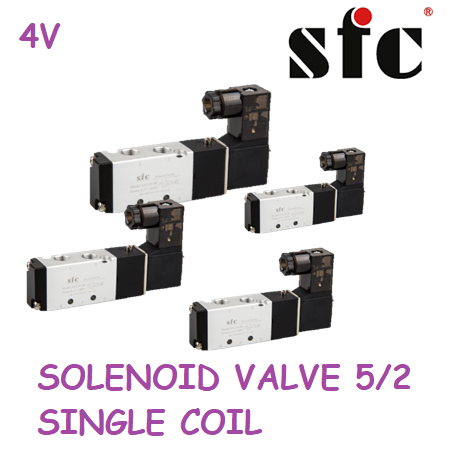

"AVA-sfc" 5/2 Solenoid Valve 4V Series









คุณสมบัติ,รายละเอียดอื่นๆ: SOLENOID VALVE 4V SERIES THREE-POSITION

Type Port size Effective area Temperature CV Value Power
consumption		 Position&coil operating
pressure		 Valtage
4V110-M5 M5 12mm² -5-50°C 0.56 3VA 5/2 way
Internally piloted
acting type

Double electrical
control midst
pressure type		 0-9/kgf/cm² DC12V
DC24V
DC48V
AC24V
AC36V
AC110V
AC220V
4V110-06 PT1/8 16mm² -5-50°C 0.78 3VA
4V210-06 PT1/8 30mm² -5-50°C 1.40 3VA
4V210-08 PT1/4 50mm² -5-50°C 2.80 3VA
4V310-08 PT1/4 14mm² -5-50°C 0.56 3VA 5/2 way
Internally piloted
acting type

Double electrical
control midst
pressure type
4V310-10 PT3/8 14mm² -5-50°C 0.78 3VA
4V410-10 PT3/8 25mm² -5-50°C 1.40 3VA
4V410-15 PT1/2 50mm² -5-50°C 2.80 3VA
4V120-06 PT1/8 7mm² -5-50°C 0.67 3VA 5/3 way
Internally piloted
acting type

Double electrical
control midst
pressure type
4V220-06 PT1/8 12mm² -5-50°C 0.78 3VA
4V220-08 PT1/4 18mm² -5-50°C 1.68 3VA
4V320-10 PT3/8 30mm² -5-50°C 1.68 3VA
4V420-15 PT1/2 7mm² -5-50°C 0.67 3VA 5/3 way
Internally piloted
acting type

Double electrical
control midst
pressure type
4V130C-06 PT1/8 12mm² -5-50°C 0.78 3VA
4V230C-06 PT1/8 18mm² -5-50°C 1.68 3VA
4V230C-08 PT1/4 30mm² -5-50°C 1.68 3VA
4V330C-08 PT1/4 7mm² -5-50°C 0.67 3VA 5/3 way
Internally piloted
acting type

Double electrical
control midst
pressure type
4V330C-10 PT3/8 12mm² -5-50°C 0.78 3VA
4V430C-15 PT1/2 18mm² -5-50°C 1.68 3VA
4V130E-06 PT1/8 30mm² -5-50°C 1.68 3VA
4V230E-08 PT1/4 7mm² -5-50°C 0.56 3VA
4V330E-10 PT3/8 12mm² -5-50°C 0.78 3VA
4V430E-15 PT1/2 18mm² -5-50°C 1.40 3VA
